Chapter 13. Face recognition 101: Eigenfaces

Before we get started looking at the rich array of tools OpenIMAJ offers for working with faces, lets first look at how we can implement one of the earliest successful face recognition algorithms called "Eigenfaces". The basic idea behind the Eigenfaces algorithm is that face images are "projected" into a low dimensional space in which they can be compared efficiently. The hope is that intra-face distances (i.e. distances between images of the same person) are smaller than inter-face distances (the distance between pictures of different people) within the projected space (although there is no algorithmic guarantee of this). Fundamentally, this projection of the image is a form of feature extraction, similar to what we've seen in previous chapters of this tutorial. Unlike the extractors we've looked at previously however, for Eigenfaces we actually have to "learn" the feature extractor from the image data. Once we've extracted the features, classification can be performed using any standard technique, although 1-nearest-neighbour classification is the standard choice for the Eigenfaces algorithm.

The lower dimensional space used by the Eigenfaces algorithm is actually learned through a process called Principle Component Analysis (PCA), although sometimes you'll also see this referred to as the discrete Karhunen–Loève transform. The PCA algorithm finds a set of orthogonal axes (i.e. axes at right angles) that best describe the variance of the data such that the first axis is oriented along the direction of highest variance. It turns out that computing the PCA boils down to performing a well-know mathematical technique called the eigendecomposition (hence the name Eigenfaces) on the covariance matrix of the data. Formally, the eigendecomposition factorises a matrix, A, into a canonical form such that Av = λv, where v is a set of vectors called the eigenvectors, and each vector is paired with a scalar from λ called an eigenvalue. The eigenvectors form a mathematical basis; a set of right-angled vectors that can be used as axes in a space. By picking a subset of eigenvectors with the largest eigenvalues it is possible to create a basis that can approximate the original space in far fewer dimensions.

The Eigenfaces algorithm is simple to implement using OpenIMAJ using the EigenImages class. The EigenImages class automatically deals with converting the input images into vectors and zero-centering them (subtracting the mean) before applying PCA.

Eigenfaces will really only work well on (near) full-frontal face images. In addition, because of the way Eigenfaces works, the face images we use must all be the same size, and must be aligned (typically such that the eyes of each subject must be in the same pixel locations). For the purposes of this tutorial we'll use a dataset of approximately aligned face images from the AT&T "The Database of Faces" (formerly "The ORL Database of Faces"). Start by creating a new OpenIMAJ project, and then load the dataset:

VFSGroupDataset<FImage> dataset =
    new VFSGroupDataset<FImage>("zip:http://datasets.openimaj.org/att_faces.zip", ImageUtilities.FIMAGE_READER);

For the purposes of experimentation, we'll need to split the dataset into two halves; one for training our recogniser, and one for testing it. Just as in the Caltech 101 classification tutorial, this can be achieved with a GroupedRandomSplitter:

int nTraining = 5;
int nTesting = 5;
GroupedRandomSplitter<String, FImage> splits =
    new GroupedRandomSplitter<String, FImage>(dataset, nTraining, 0, nTesting);
GroupedDataset<String, ListDataset<FImage>, FImage> training = splits.getTrainingDataset();
GroupedDataset<String, ListDataset<FImage>, FImage> testing = splits.getTestDataset();

The first step in implementing an Eigenfaces recogniser is to use the training images to learn the PCA basis which we'll use to project the images into features we can use for recognition. The EigenImages class needs a list of images from which to learn the basis (i.e. all the training images from each person), and also needs to know how many dimensions we want our features to be (i.e. how many of the eigenvectors corresponding to the biggest eigenvalues to keep):

List<FImage> basisImages = DatasetAdaptors.asList(training);
int nEigenvectors = 100;
EigenImages eigen = new EigenImages(nEigenvectors);
eigen.train(basisImages);

One way of thinking about how we use the basis is that any face image can literally be decomposed as weighted summation of the basis vectors, and thus each element of the feature we'll extract represents the weight of the corresponding basis vector. This of course implies that it should be possible to visualise the basis vectors as meaningful images. This is indeed the case, and the EigenImages class makes it easy to do. Let's draw the first 12 basis vectors (each of these basis images is often referred to as an EigenFace):

List<FImage> eigenFaces = new ArrayList<FImage>();
for (int i = 0; i < 12; i++) {
    eigenFaces.add(eigen.visualisePC(i));
}
DisplayUtilities.display("EigenFaces", eigenFaces);

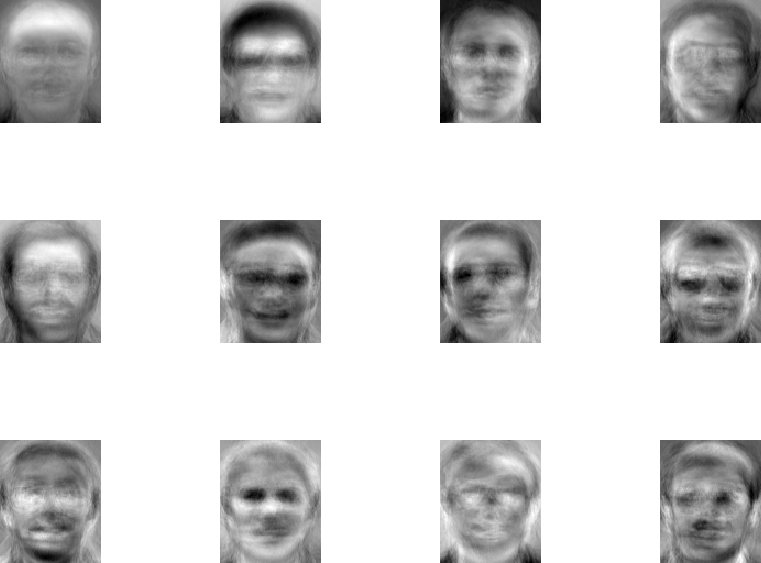

At this point you can run your code. You should see an image very similar to the one below displayed:

Now we need to build a database of features from the training images. We'll use a Map of Strings (the person identifier) to an array of features (corresponding to all the features of all the training instances of the respective person):

Map<String, DoubleFV[]> features = new HashMap<String, DoubleFV[]>();
for (final String person : training.getGroups()) {
    final DoubleFV[] fvs = new DoubleFV[nTraining];

    for (int i = 0; i < nTraining; i++) {
        final FImage face = training.get(person).get(i);
        fvs[i] = eigen.extractFeature(face);
    }
    features.put(person, fvs);
}

Now we've got all the features stored, in order to estimate the identity of an unknown face image, all we need to do is extract the feature from this image, find the database feature with the smallest distance (i.e. Euclidean distance), and return the identifier of the corresponding person. Let's loop over all the testing images, and estimate which person they belong to. As we know the true identity of these people, we can compute the accuracy of the recognition:

double correct = 0, incorrect = 0;
for (String truePerson : testing.getGroups()) {
    for (FImage face : testing.get(truePerson)) {
        DoubleFV testFeature = eigen.extractFeature(face);

        String bestPerson = null;
        double minDistance = Double.MAX_VALUE;
        for (final String person : features.keySet()) {
            for (final DoubleFV fv : features.get(person)) {
                double distance = fv.compare(testFeature, DoubleFVComparison.EUCLIDEAN);

                if (distance < minDistance) {
                    minDistance = distance;
                    bestPerson = person;
                }
            }
        }

        System.out.println("Actual: " + truePerson + "\tguess: " + bestPerson);

        if (truePerson.equals(bestPerson))
            correct++;
        else
            incorrect++;
    }
}

System.out.println("Accuracy: " + (correct / (correct + incorrect)));

Now run the code again. You should see the actual person identifier and predicted identifier printed as each face is recognised. At the end, the overall performance will be printed and should be close to 93% (there will be some variability as the test and training data is split randomly each time the program is run).

13.1. Exercises

13.1.1. Exercise 1: Reconstructing faces

An interesting property of the features extracted by the Eigenfaces algorithm (specifically from the PCA process) is that it's possible to reconstruct an estimate of the original image from the feature. Try doing this by building a PCA basis as described above, and then extract the feature of a randomly selected face from the test-set. Use the EigenImages#reconstruct() to convert the feature back into an image and display it. You will need to normalise the image (FImage#normalise()) to ensure it displays correctly as the reconstruction might give pixel values bigger than 1 or smaller than 0.

13.1.2. Exercise 2: Explore the effect of training set size

The number of images used for training can have a big effect in the performance of your recogniser. Try reducing the number of training images (keep the number of testing images fixed at 5). What do you observe?

13.1.3. Exercise 3: Apply a threshold

In the original Eigenfaces paper, a variant of nearest-neighbour classification was used that incorporated a distance threshold. If the distance between the query face and closest database face was greater than a threshold, then an unknown result would be returned, rather than just returning the label of the closest person. Can you alter your code to include such a threshold? What is a good value for the threshold?
